West Coast Tbars - Classic Tbars

FXR Bazaar is an authorized dealer of West Coast Tbars.

We only cary select heights and raw finish. This drastically shortens the timeline from ordering to delivery at your doorstep.

Pre-order:

Currently all inventory is set to "pre-order" (you'll see that on the product page purchase button). We issue pre-order for a 1-week period of time.

After that week is up, we will place an order with West Coast Tbars and I will set the inventory count on the website.

We do not dropship. If our website says we have inventory, then we either have that product in-stock, or it has been recently ordered (pre-order has ended) from West Coast Tbars and is set to arrive shortly. Please contact me if you would like to know the status of inventory.

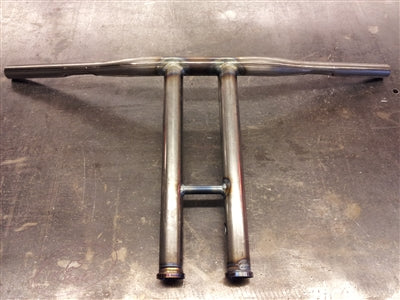

Classic Tbar Features:

Metal: 1080 mild gauge steel tubing
Coating: RAW METAL

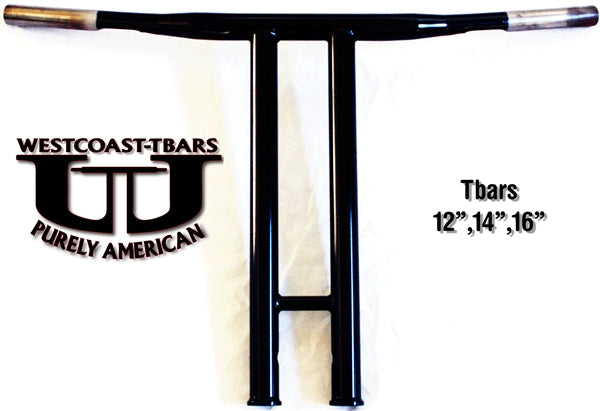

Powdercoating:

We can powdercoat these bars for you at an additional cost of $100. Powdercoating ends 5.5" inches before each side for easier installation of your controls

Top Crossbar:

• 1 1/4" swaged (tapered) down to 1"diameter. Both sides have 5/8" holes are punched for internal wiring. (Fits conventional controls)
• Cross width is 28" across and pullback is 2 1/2".
• Your Wrist angle will be at a 16 degree angle Cross bar is welded to sit flat on a 28 degree rake
• The (2) - 3/4" holes in middle of the bar are made to be centered for the 3 1/2 spacing of the risers.
• Heated grips compatible

Risers:

• All cuts and holes are made by Laser cutting
• 3 1/2" spacing between risers. (Fits conventional top triple tree clamps)
• 5/8" oval holes are 1 7/8" up from the bottom for internal wiring.

Riser Bungs:

• These bungs are designed to be a steel 1 piece, 3 tier design. First tier fits inside the 1 1/4" tubing. Second tier meets flush with the bottom of the risers and is TIG welded bonding the bung to the riser. The third tier widens to 1 1/2" and is hollowed out 1/4" deep. This eliminates the need of a traditional washer setup, the handlebar bushing fits perfectly inside the custom bung.


Recommendations:

• Heavy Duty Bushings
• Grade 8 or Grade 9 (L9) bolts


Keynote:

• We only purchase risers in 12", 14" and 16" tall. The top cross bar is welded on top of riser tubes. 12" = 13", 14" = 15" and 16" = 17" overall height including top crossbar.
• 4 total weld points
